Electronic component moulding from tooling review to repeat orders

JingZhan supports custom moulding programmes for electronic housings, covers and interface components. The part drawings, operating environment and planned demand guide the tooling and material review, while trial samples establish the approved dimensional, cosmetic and assembly baseline.

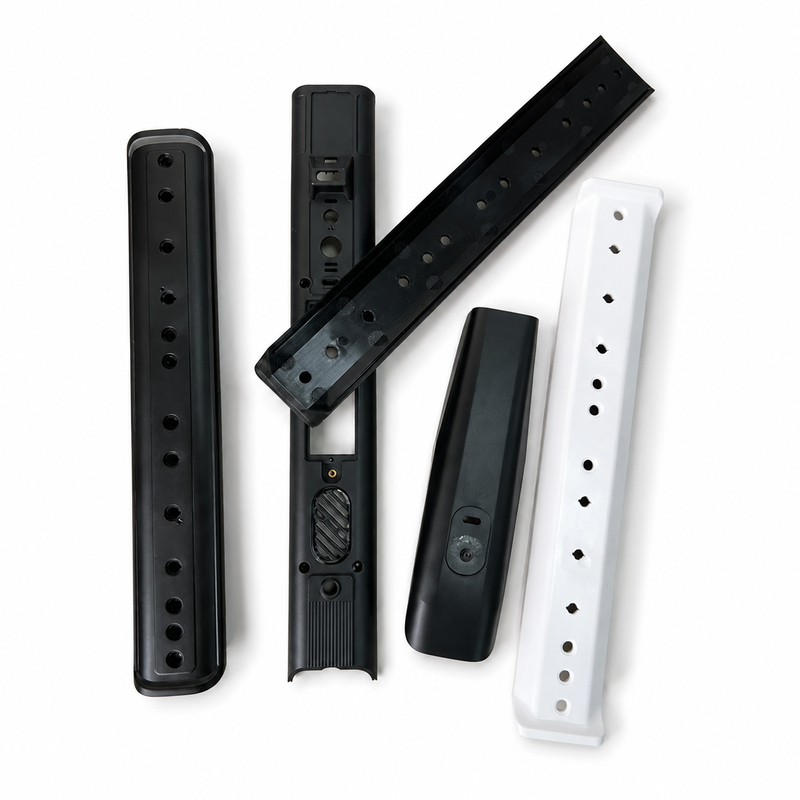

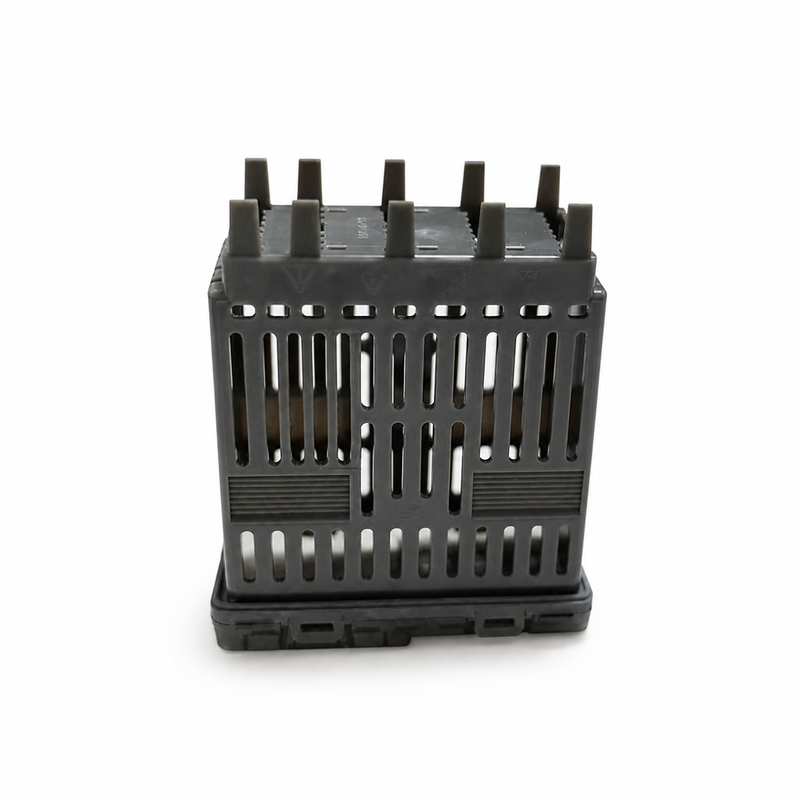

Electronic grille housing and enclosure parts. Geometry, material and acceptance criteria are defined for each project.

DESIGN AND MANUFACTURING

Key processing requirements

Define the manufacturing brief

Provide CAD, drawings, mating components and critical features. Separate must-hold dimensions from general tolerances and identify cosmetic surfaces before the tool layout is approved.

Review moulding risks

Assess filling, gates, vents, cooling and ejection for the actual geometry. Resolve thin sections, deep ribs and abrupt thickness transitions before they become trial or production problems.

Validate the component in context

Combine first-article inspection with fit checks using real counterparts or agreed gauges. Record acceptance and corrections before repeating production with the approved grade and process baseline.

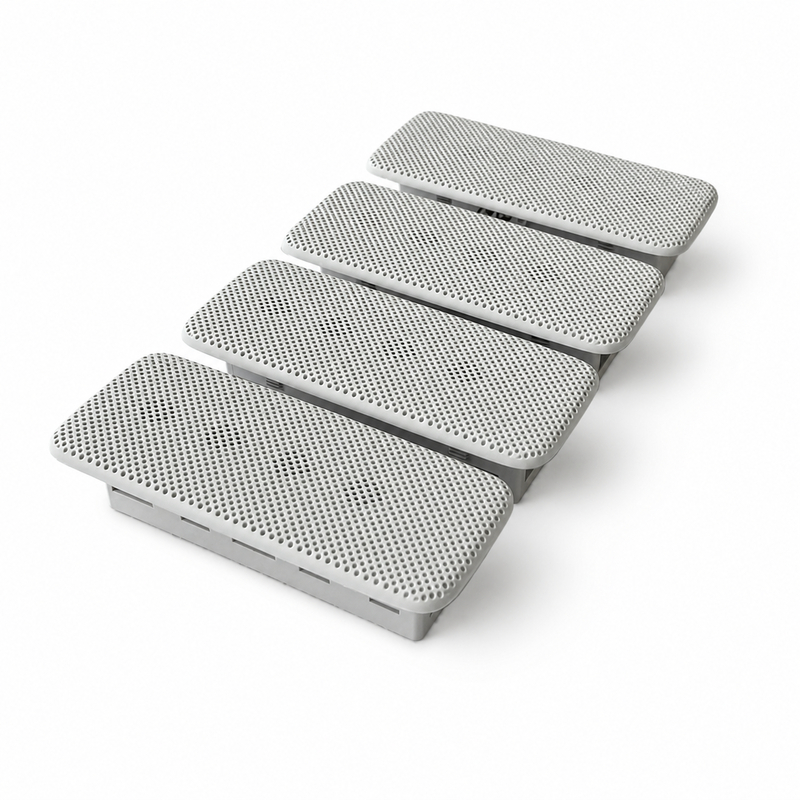

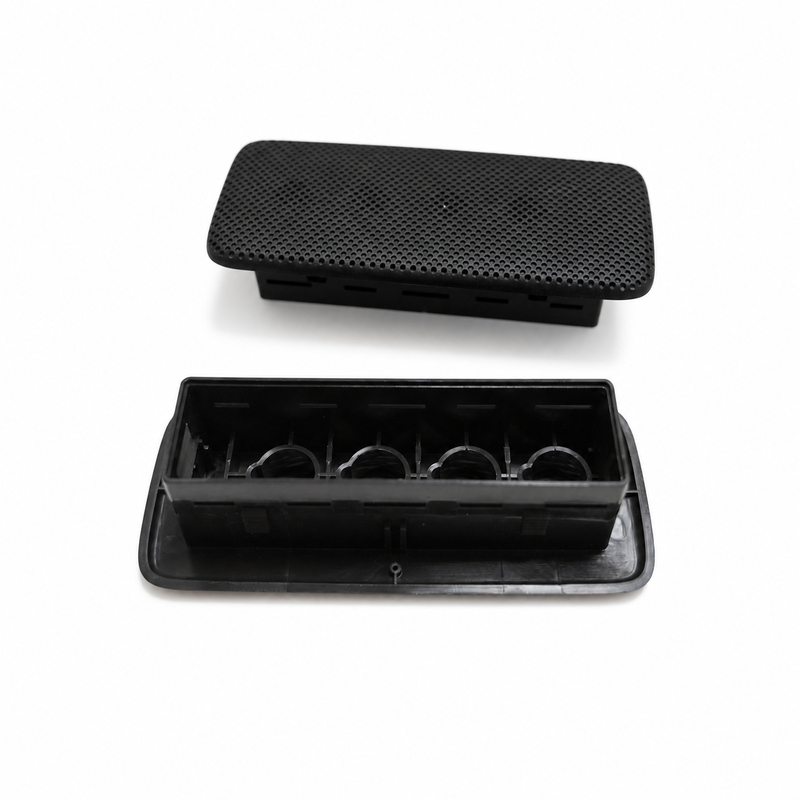

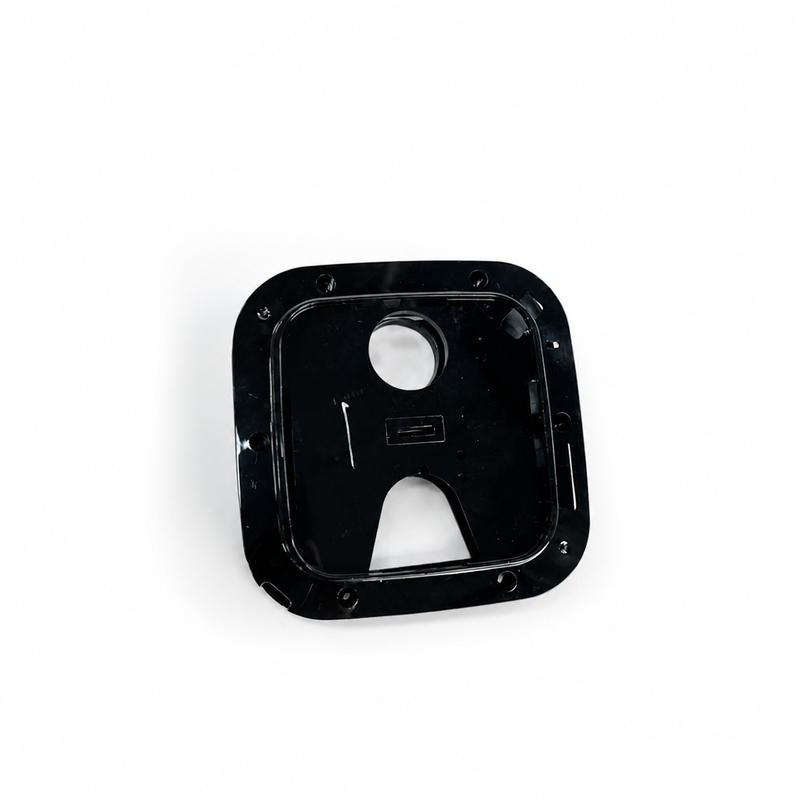

Perforated electronic cover sample. Geometry, material and acceptance criteria are defined for each project.

TECHNICAL SPECIFICATIONS

Parameters agreed for your part

Custom-manufacturing options, not common measured values for every pictured part.
Parameter	Project specification
Manufacturing scope	Custom mould tooling, injection moulding and trial approval.
Material selection	ABS, PC/ABS, PC and other reviewed engineering thermoplastics.
Engineering focus	Housing openings, ribs, bosses, cosmetic faces and assembly datums.
Dimensions and tolerance	Approved drawing; feature-specific agreement and inspection method.
Colour and finish	Grade, colour, texture and cosmetic zones confirmed before trials.
Tool arrangement	Cavity count and inserts selected against geometry and demand.
Quality records	First-article and agreed batch checks; reporting scope quoted.
Delivery	Protected parts or agreed sets with lot and revision identification.

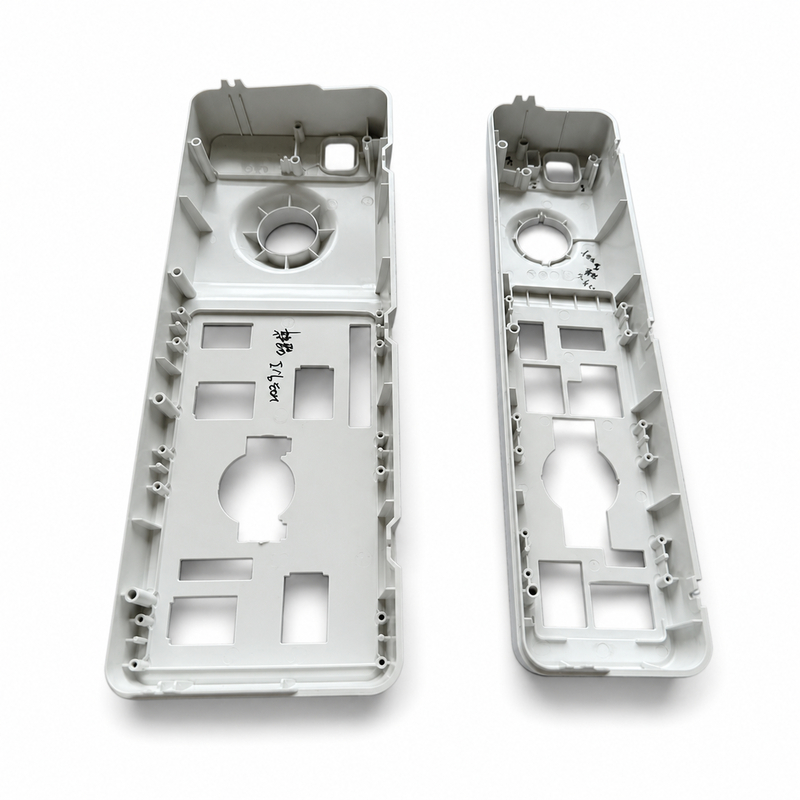

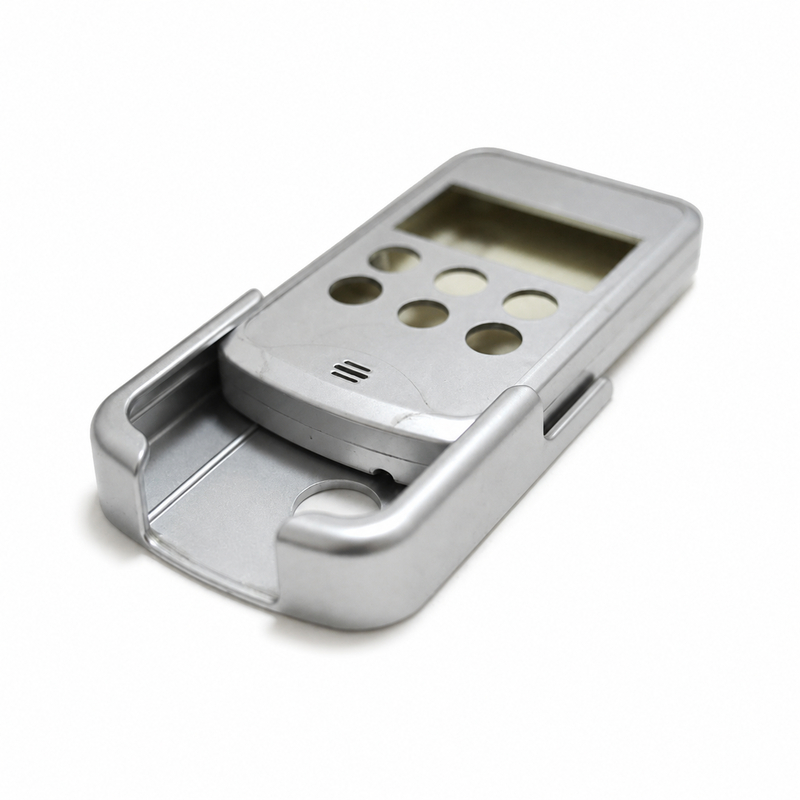

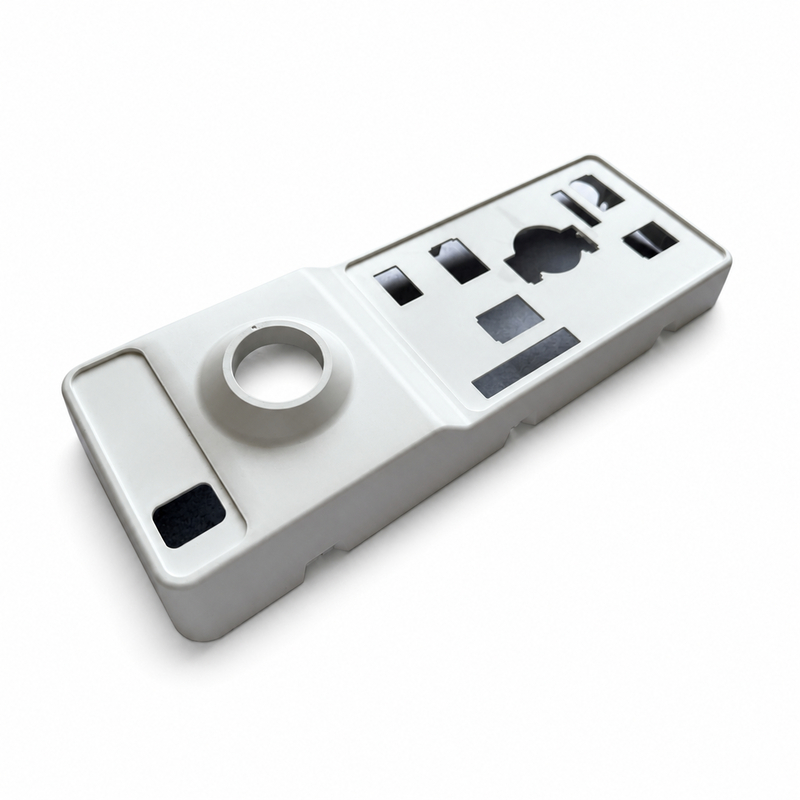

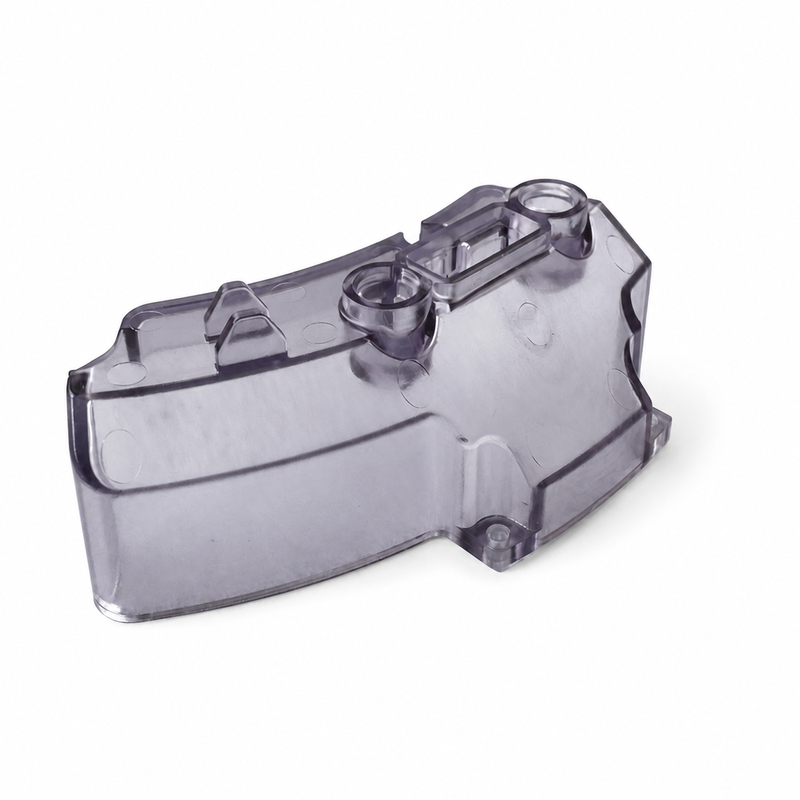

Handheld electronic housing with internal and external interfaces. Geometry, material and acceptance criteria are defined for each project.

PRODUCTION AND REPEAT SUPPLY

Equipment, lead time and order planning

The supplied company equipment inventory includes 50–500-tonne moulding machines, CNC and EDM tooling resources, plus CMM and optical measurement equipment. Press selection depends on shot volume, projected area, resin and cavity layout. Equipment capability does not establish one tolerance for every moulded feature.

Indicative planning only. Final MOQ and lead time are confirmed for the project.
Planning item	Basis for quotation
DFM review	Indicative 3–5 working days after complete drawings and requirements.
New tooling	Indicative 4–8 weeks to first tool trial after tool-design approval and commercial release; corrections and customer validation are additional.
Order quantities	Initial quotation-planning basis: a 500-piece pilot or 1,000-piece repeat batch per part number, resin and colour, subject to project quotation.
Repeat orders	Indicative 10–15 working days after materials and the production slot are confirmed. Customer qualification, special processing and transit are additional.

Company precision machining support area, shown in company source photography.

Keep repeat orders on an approved baseline

Repeat supply should follow the approved drawing, resin grade, reference samples and inspection plan. Agree material-lot identification, cavity tracking where required, packaging and change approval. Plan tool maintenance and releases around actual demand so later batches remain comparable to the approved baseline.

Tooling investment is quoted separately from the piece price. Share annual demand and release quantities so cavity count, procurement and batch cost can be reviewed together.

RELATED APPLICATIONS

Where these components can be used

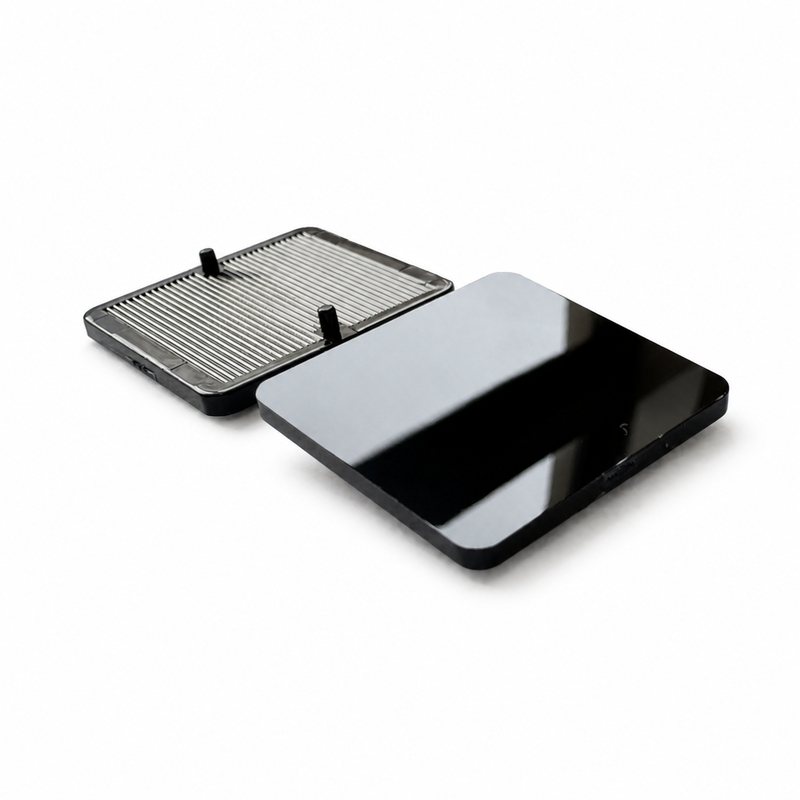

Electronic equipment housings, covers and grille components.

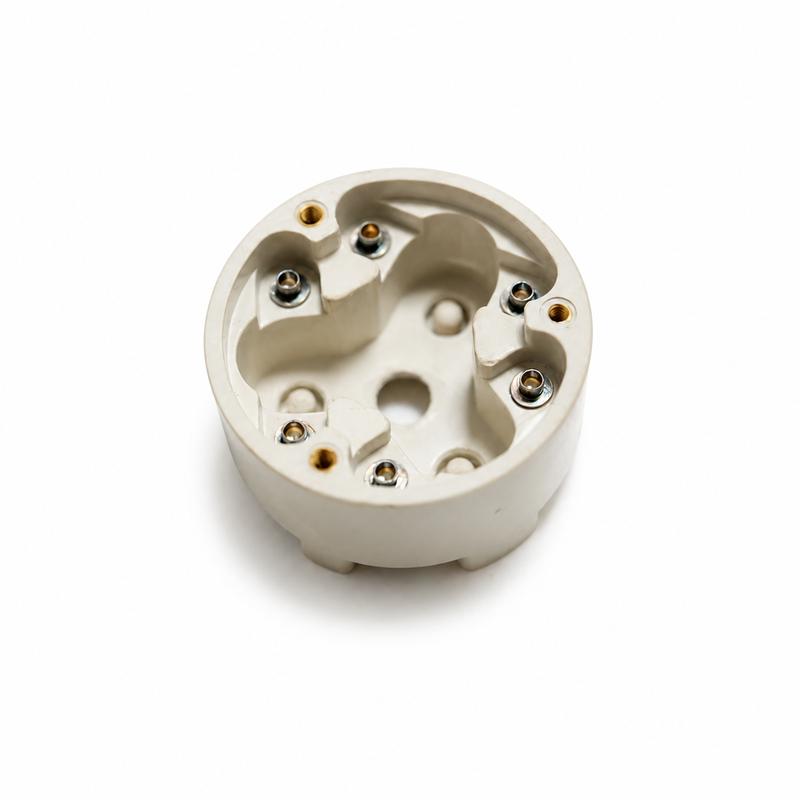

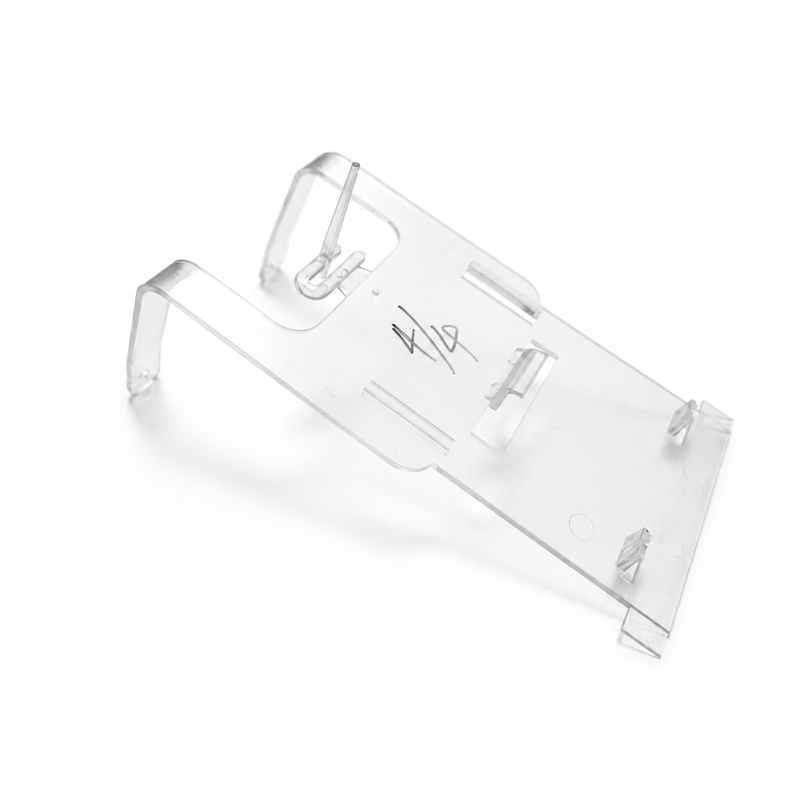

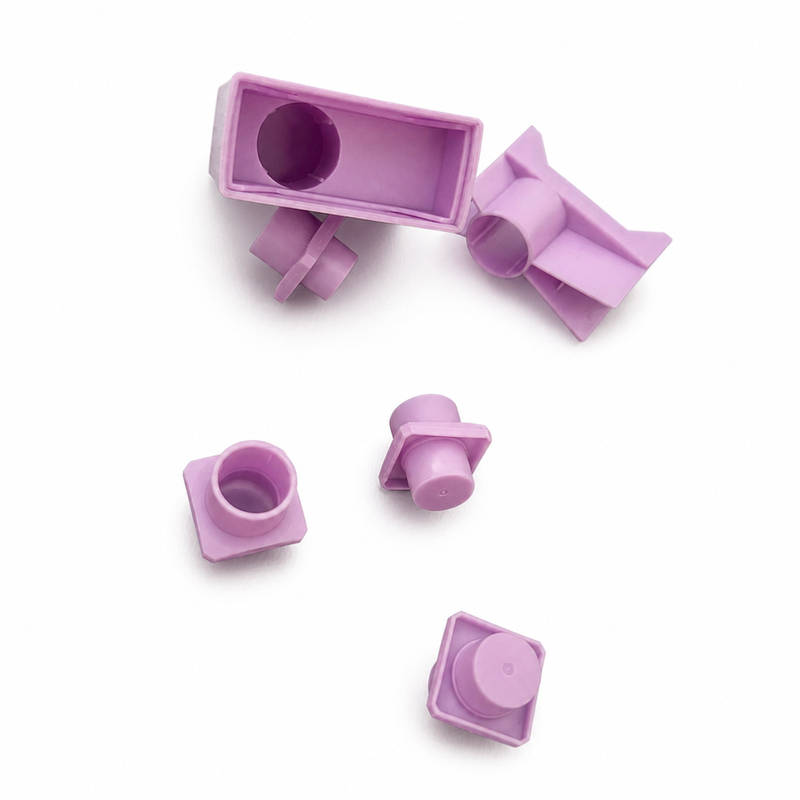

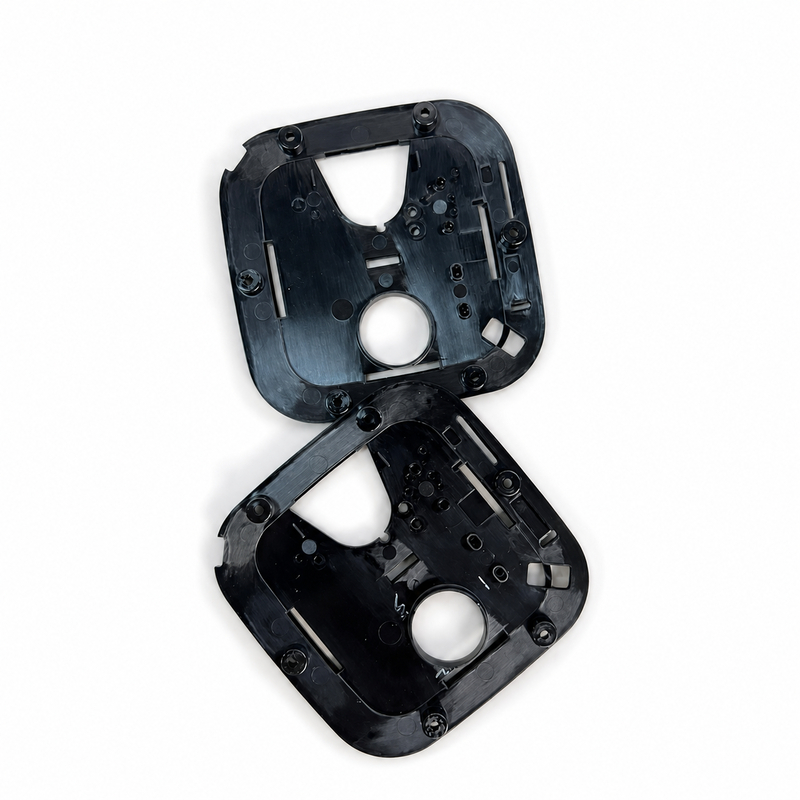

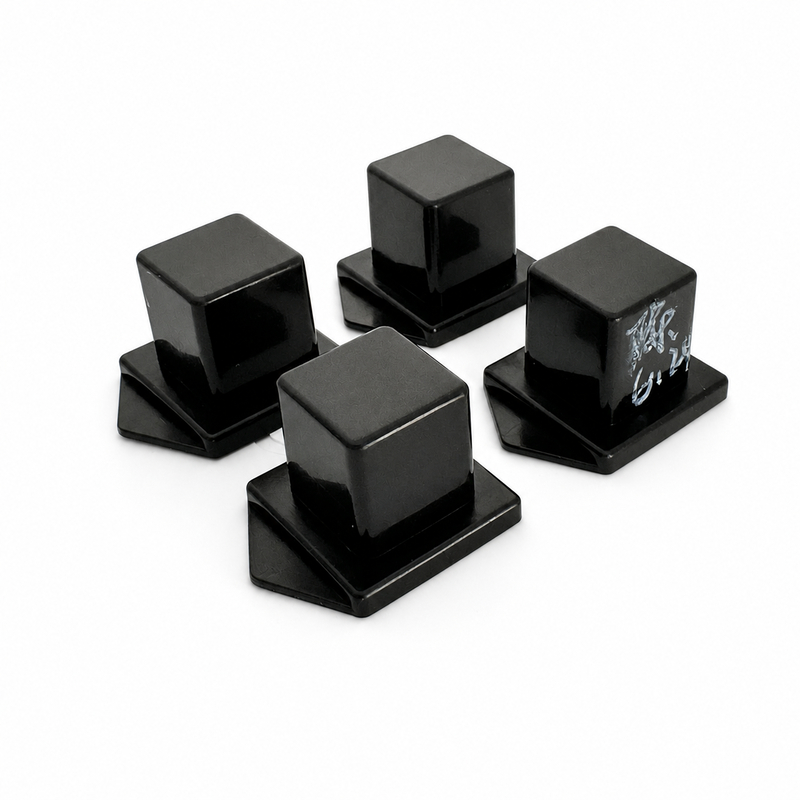

Custom control, peripheral and instrument assembly parts.

Company tooling machining area. Production and inspection scope are confirmed for the order.

Photographs show company-manufactured component examples, not standard products with shared specifications. Electrical, flame, optical, environmental or other performance claims require grade documentation and project-specific validation.

Discuss your drawing and supply requirements. Send CAD, resin preference, critical features, annual demand and release quantity. Contact our engineering team →

Process	Precision plastic injection molding
Typical Applications	Housings, frames, battery holders, panels, buttons, connectors and insulating parts
Material Support	Engineering and electrical-application thermoplastics
Project Scope	DFM, tooling, sampling and volume production
Quality Focus	Thin-wall stability, appearance, assembly fit and dimensional consistency
