Filter Injection Molded Components

Custom moulded components for coordinated filter assemblies

JingZhan supports custom plastic filter frames, cartridge supports, caps and related assembly parts from DFM review through repeat supply. Reviewing the component set together helps connect the medium, housing and end interfaces before tooling is released. Each part is supplied to its approved drawing and scope, rather than a common specification applied to every pictured component.

DESIGN AND MANUFACTURING

Key processing requirements

Review the complete component set

Identify the part numbers, mating pieces, medium and assembly sequence. Define which features support the medium, locate the cartridge or close the housing so each part receives the appropriate drawing and acceptance criteria.

Coordinate fit and sealing requirements

Provide engagement, thread, gasket and end-face information where relevant. Agree fit checks using representative mating parts and specify any assembly tests, including their conditions and acceptance criteria.

Match the resin to service conditions

Review the actual fluid, temperature, loading, cleaning and joining method with the selected grade. Confirm colour, material identification and any allowed changes before approving tooling trials.

Set a stable production baseline

Assess wall transitions, ribs, slender sections, gates and demoulding during DFM. Define critical dimensions, visual limits, checking fixtures and cavity identification where required for consistent repeat batches.

TECHNICAL SPECIFICATIONS

Parameters agreed for your part

PRODUCTION AND REPEAT SUPPLY

Equipment, lead time and order planning

The proposed route combines CNC/EDM toolmaking and injection moulding with feature-appropriate checks. JingZhan's equipment list includes machining, EDM, moulding and dimensional/vision inspection resources. Tool and press selection follow the actual geometry and resin. Insert work, secondary joining or assembly is defined separately where required, not assumed for every pictured example.

Keep repeat orders on an approved baseline

Approve component revisions, resin grades, mating samples and packing before regular releases. Keep identification and order quantities aligned for coordinated parts. Record tool repairs and review changes affecting support, engagement or sealing features before supplying subsequent batches.

Tooling investment is quoted separately from the piece price. Share annual demand and release quantities so cavity count, procurement and batch cost can be reviewed together.

RELATED APPLICATIONS

Where these components can be used

Plastic component development for customer-designed industrial fluid-filtration systems.

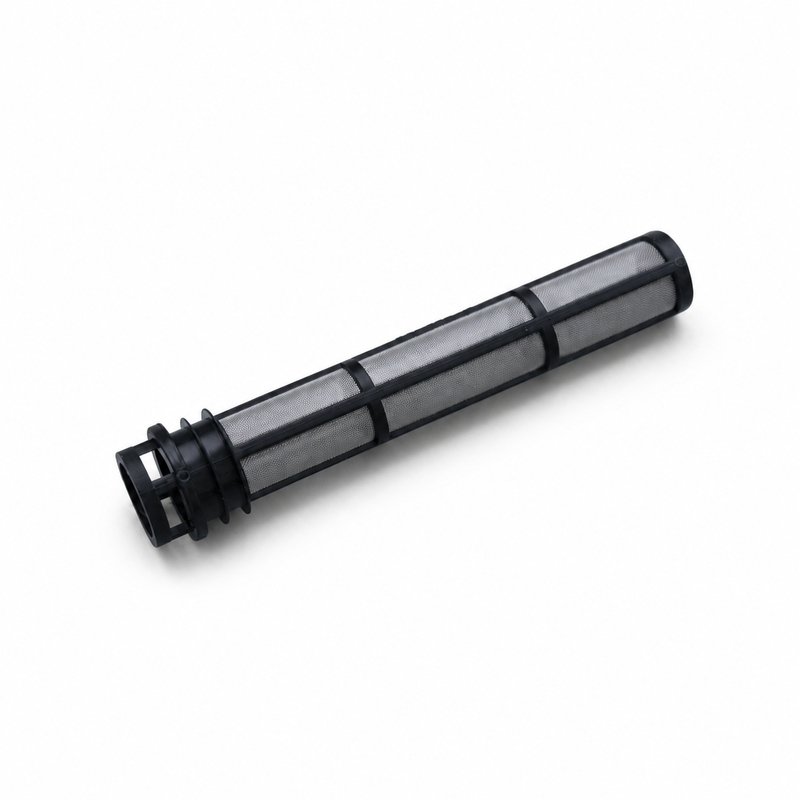

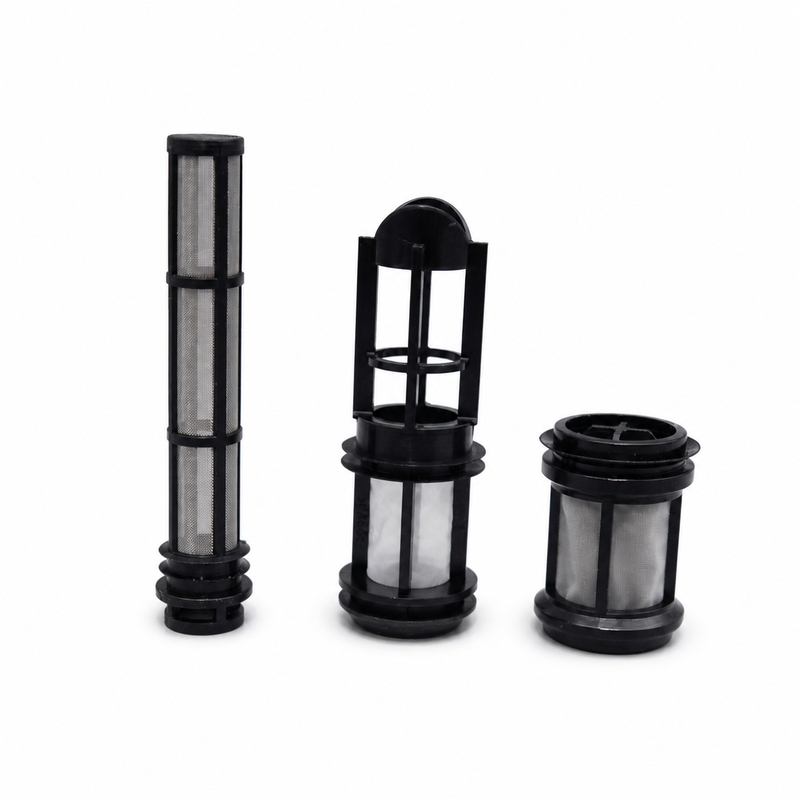

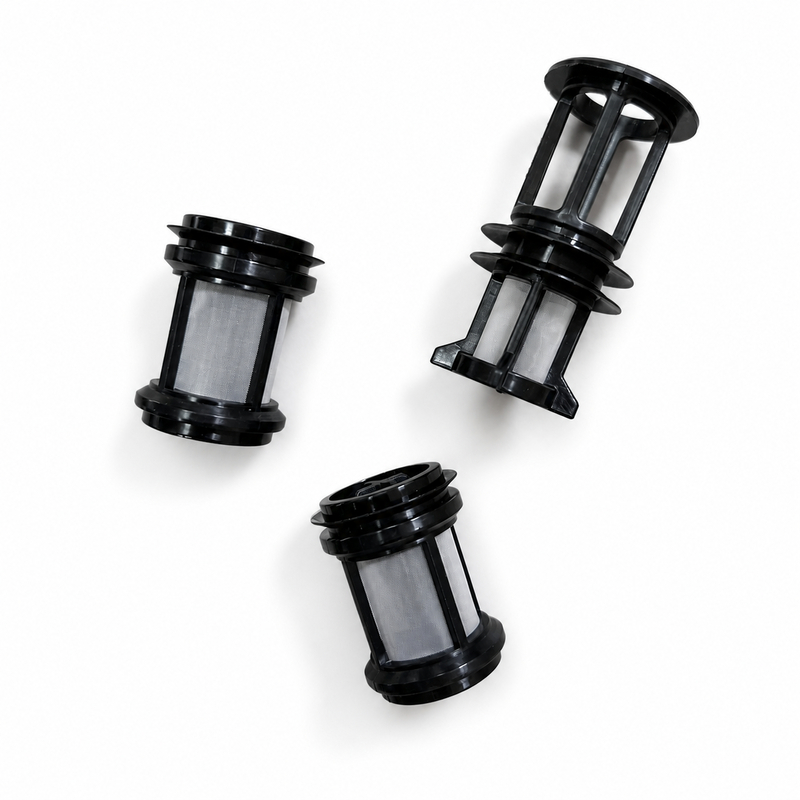

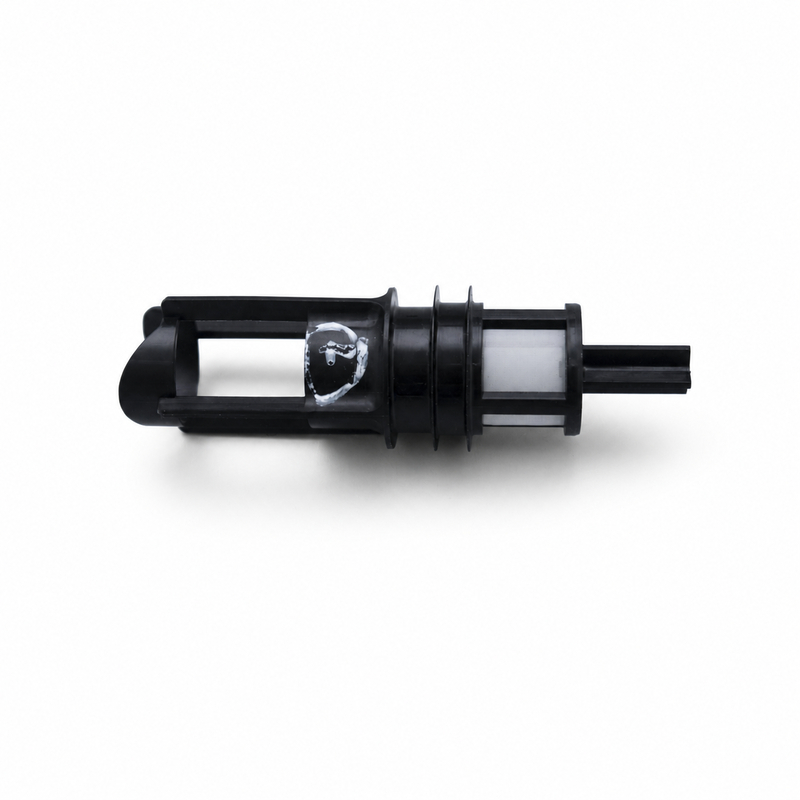

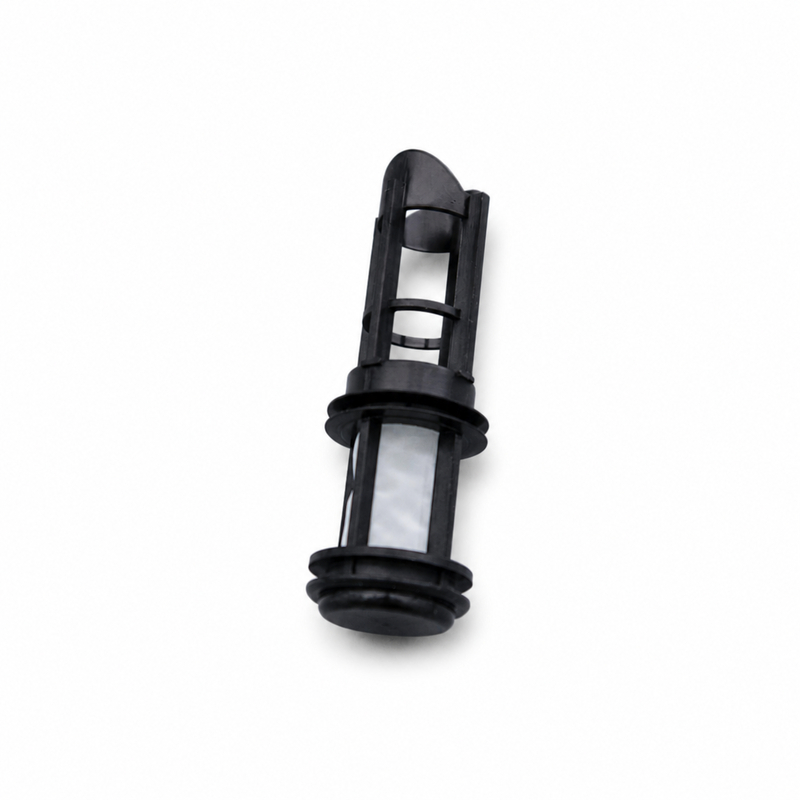

Filter support and cartridge assemblies coordinated with specified media and housings.

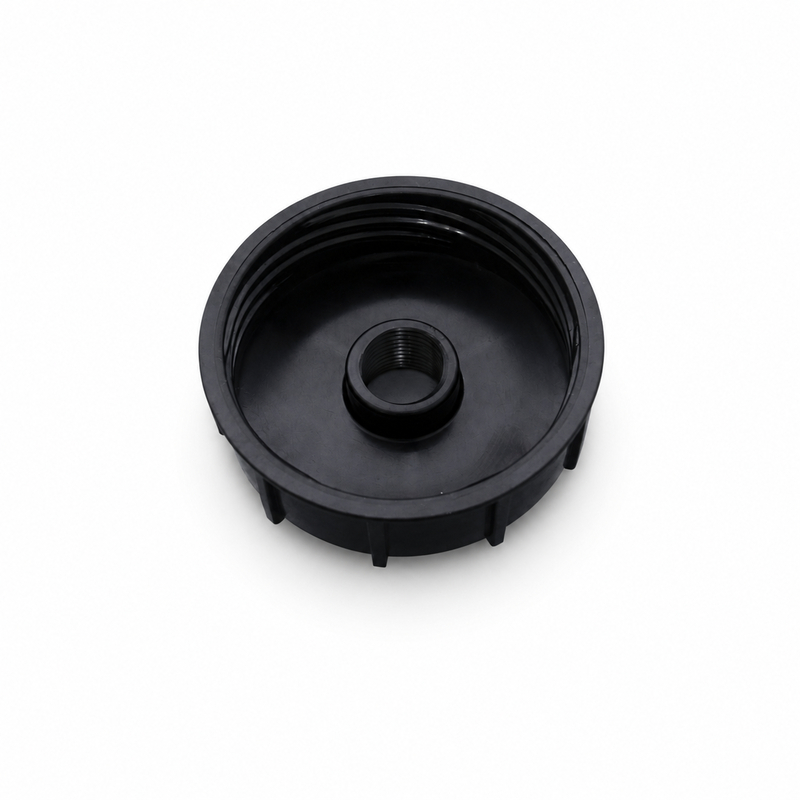

Related round caps and end components for custom fluid-system assembly projects, with application-specific qualification.

The pictured components have different geometries and functions. Micron rating, efficiency, pressure drop, flow capacity and durability require the specified filter medium and complete assembly; they are not guaranteed by the plastic part's appearance. Non-plastic items are supplied only within an agreed quotation scope.
