Medical component projects from tooling to repeat supply

JingZhan develops dedicated moulds and custom injection-moulded components for medical-equipment and laboratory projects. The supply route connects DFM, tool trials, dimensional inspection and repeat production. Pictured parts represent different component families, not a common stock specification or a finished-device approval.

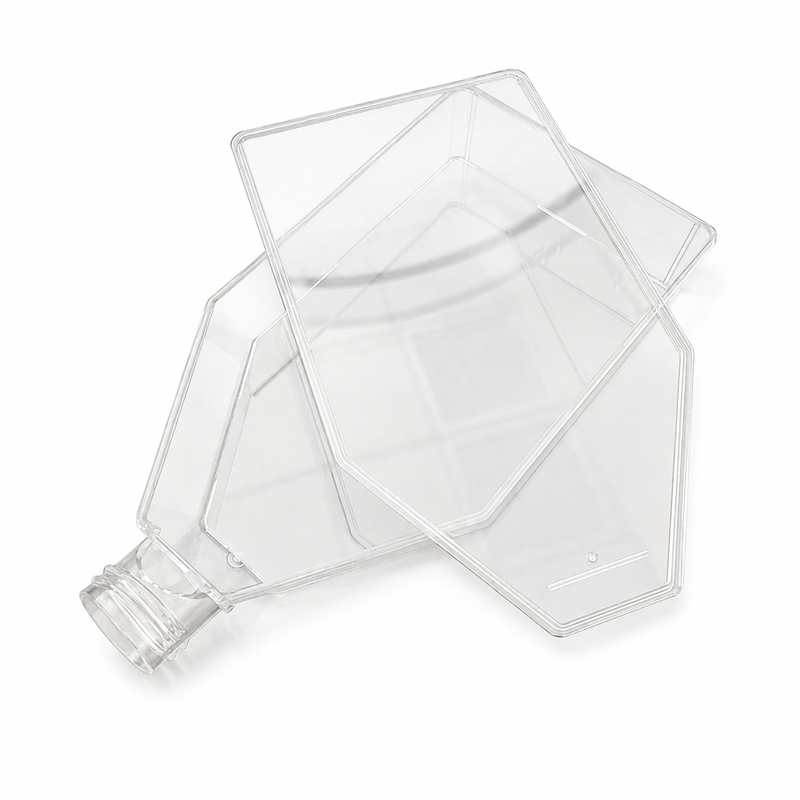

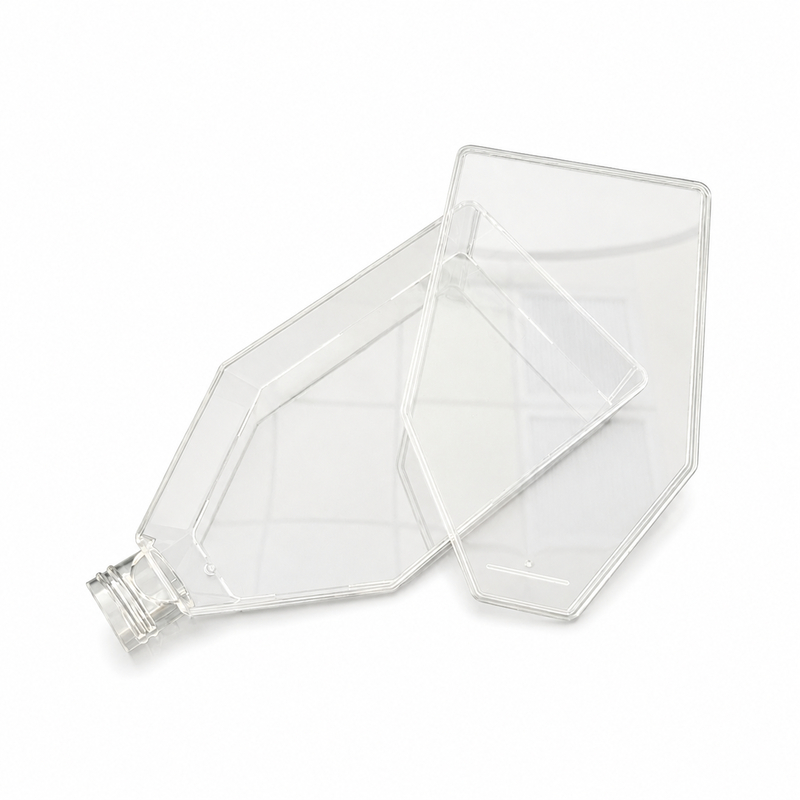

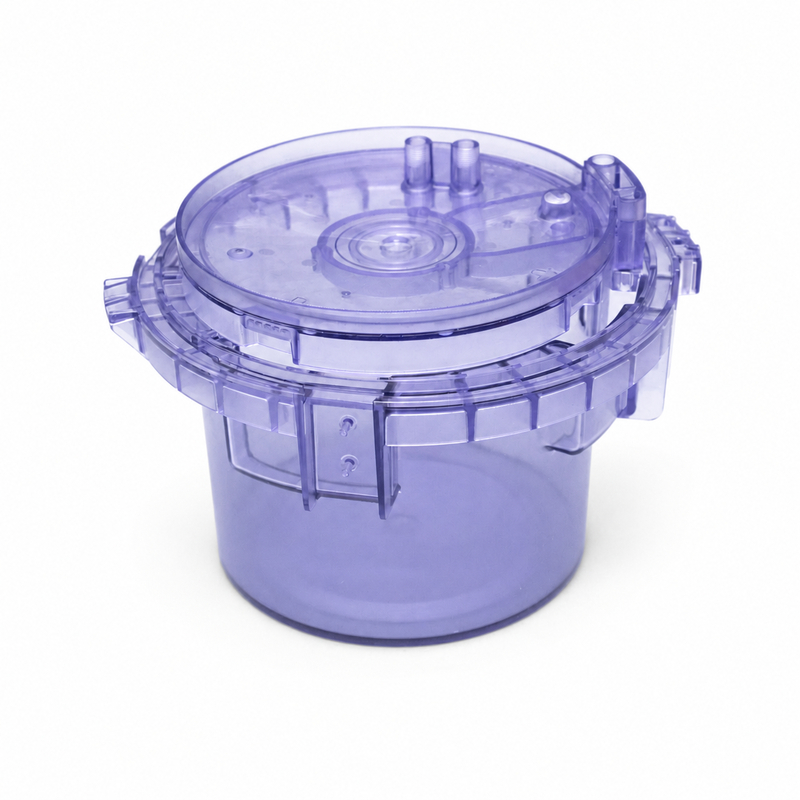

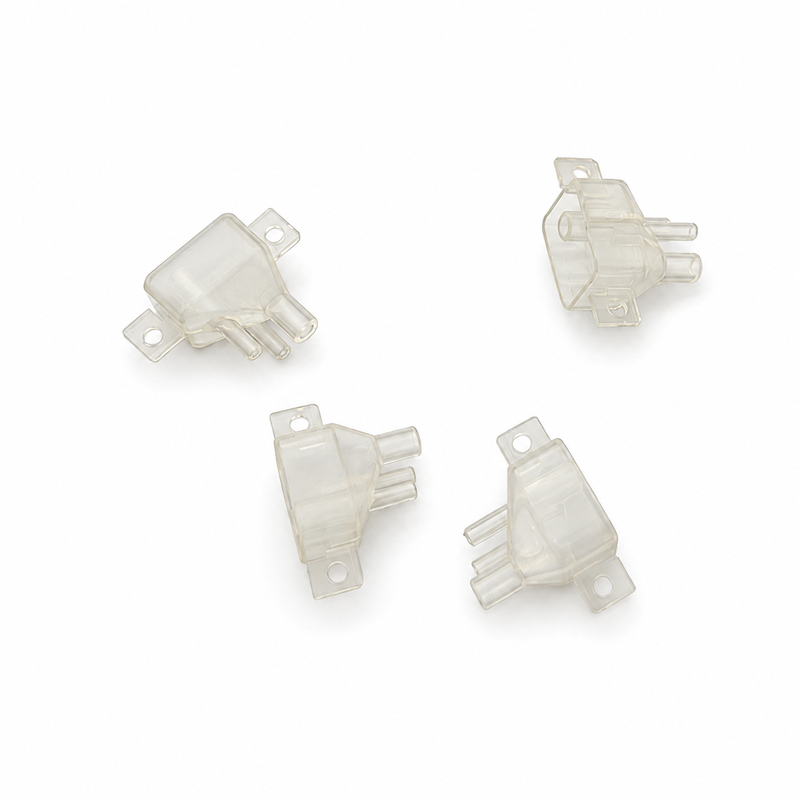

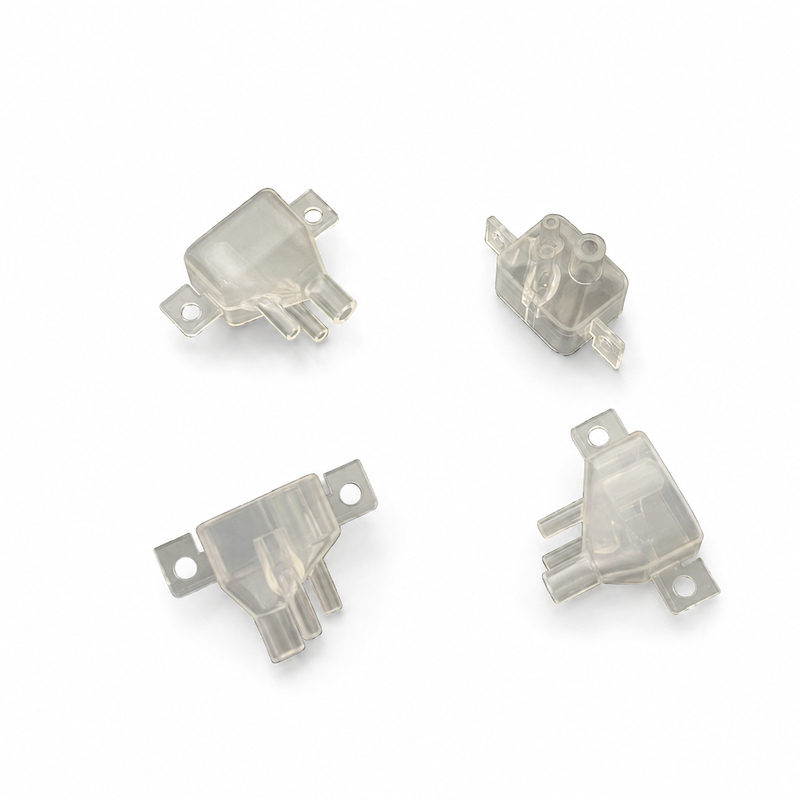

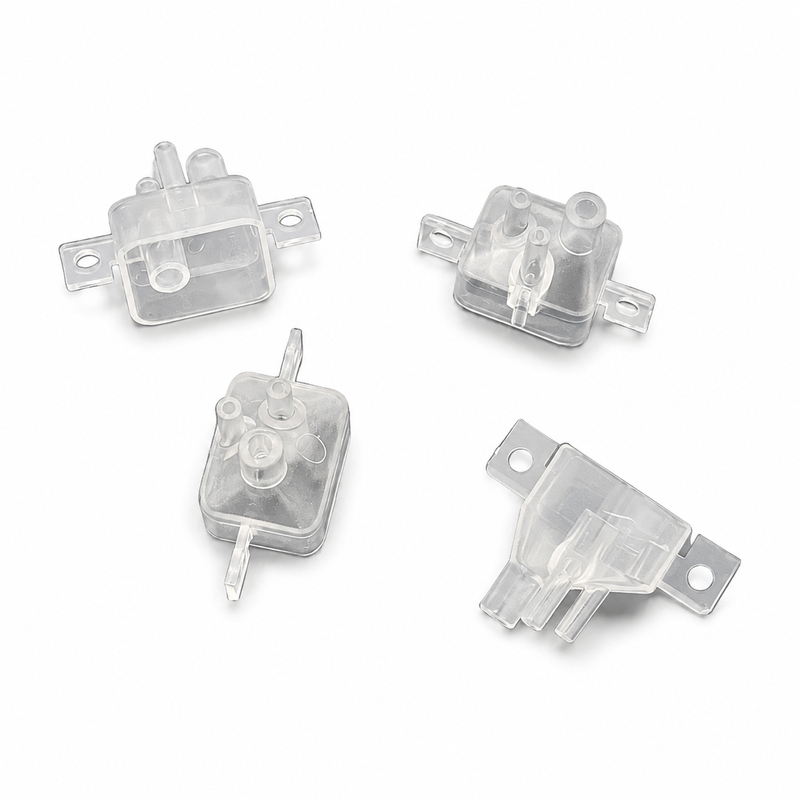

Tinted moulded chamber component sample — Chamber-component example with a tapered body and defined port interfaces.

DESIGN AND MANUFACTURING

Key processing requirements

Start with the intended assembly. Provide approved drawings, mating parts, critical functions and expected annual demand. Identify the features controlling fit, sealing, movement and appearance.
Approve the exact material grade. Review resin, colour, additives and intended contact conditions. Define required supplier documents and assess any cleaning or sterilization process for the finished design.
Make acceptance measurable. Agree critical dimensions, appearance samples, functional tests and sampling. Toolmaking-equipment accuracy is not a blanket tolerance for every moulded part.
Plan the complete supply condition. Specify production-environment, cleanliness, packing and traceability requirements before quotation. Finished-device biological evaluation and regulatory approval are separate responsibilities.

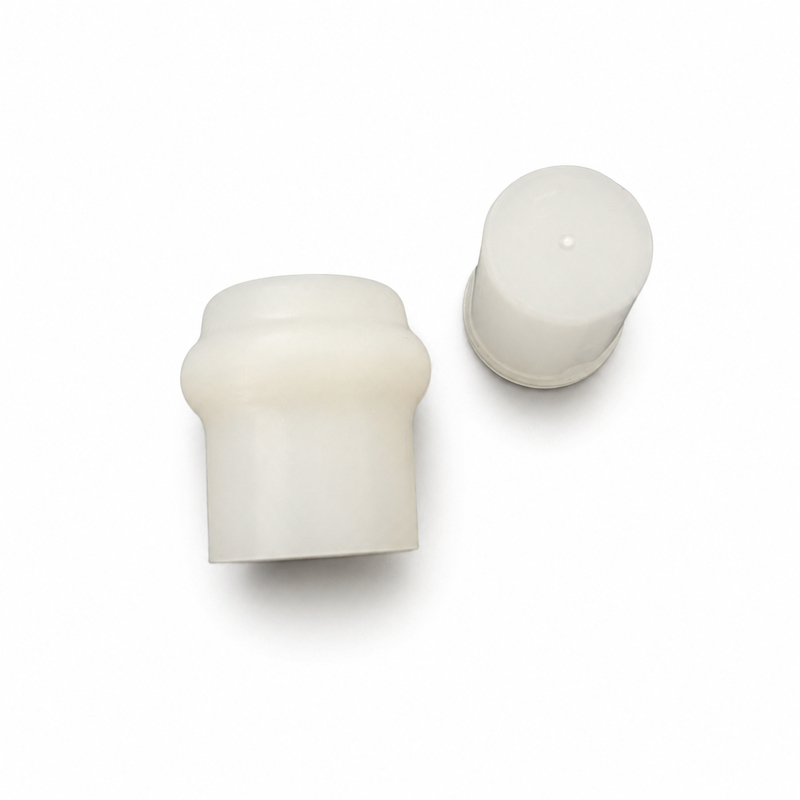

Circular moulded locating plate component — Related structural component with repeated locating and fastening features.

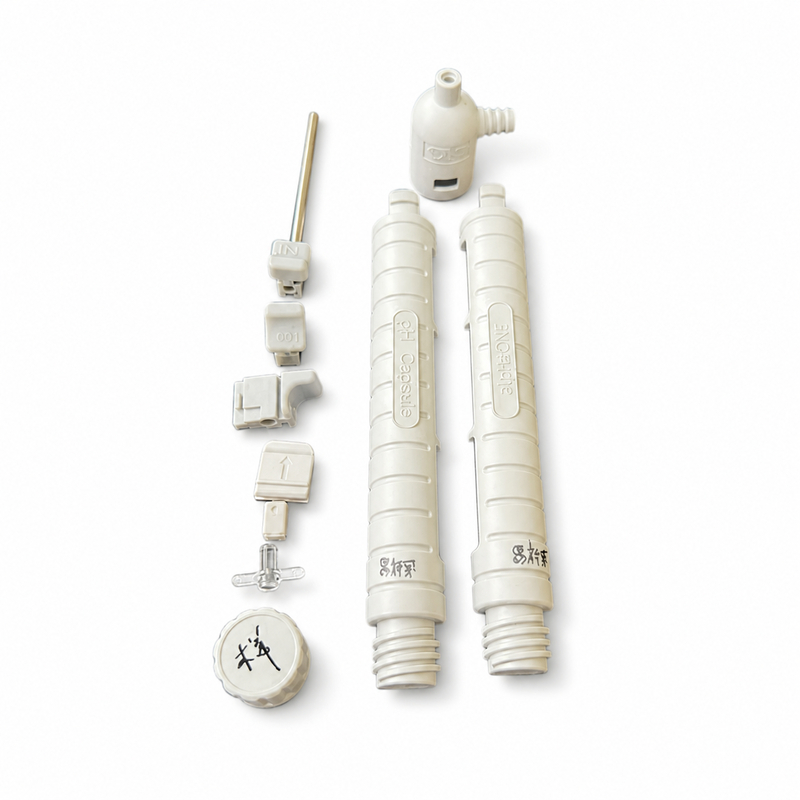

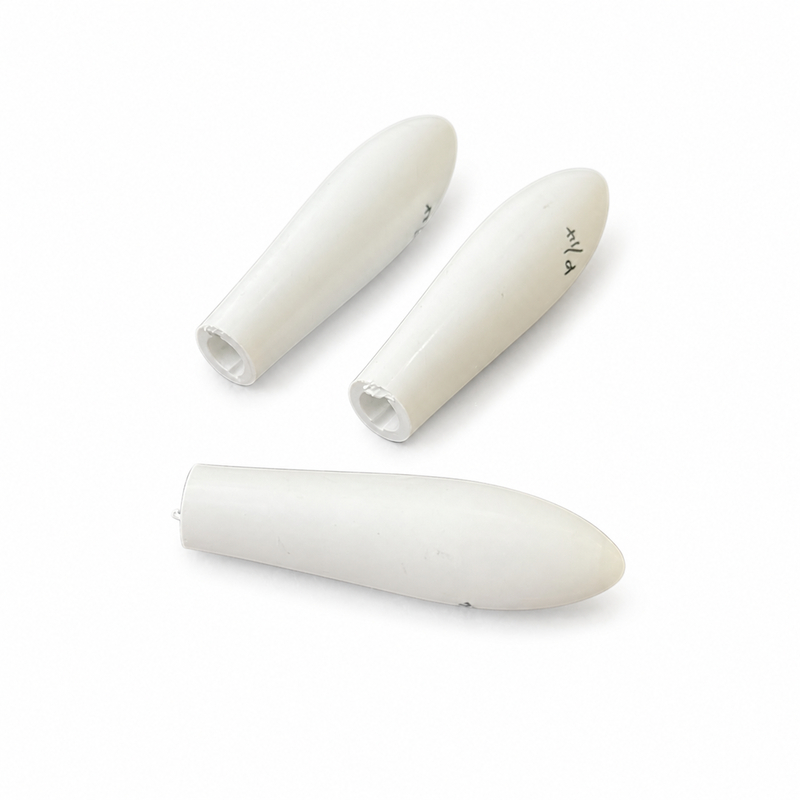

White moulded tubular device housing component — Tubular housing sample illustrating access openings and internal-support geometry.

TECHNICAL SPECIFICATIONS

Parameters agreed for your part

Custom-manufacturing options, not common measured values for every pictured part.
Parameter	Project specification
Manufacturing scope	Dedicated tooling and custom injection moulding for approved component designs.
Product families	Housings, caps, containers, connectors, fluid-routing parts and laboratory components.
Material options	PP, PE, PC, ABS, COC/COP and other listed resins reviewed against the specific application.
Dimensions and tolerance	Drawing-specific geometry, critical datums and measurement methods.
Tooling options	Cavity count, runner, insert steel and maintenance plan confirmed in the proposal.
Inspection	Agreed dimensional, visual and functional checks with project-specific records.
Supply condition	Packing, environment, cleanliness and any sterilization scope agreed explicitly.
Repeat-order baseline	Approved part revision, resin, accepted samples and shipment identification.

PRODUCTION AND REPEAT SUPPLY

Equipment, lead time and order planning

Listed manufacturing resources include CNC centres, Sodick/Makino EDM, grinding and finishing equipment. Moulding options include Nissei 50–100 T, Chen Hsong 128–260 T and Haitian 500 T presses. Engineering selects the route for each tool; CMM, vision measurement and microscopy are assigned to suitable inspection features.

Indicative quotation planning only. Final MOQ and lead time are confirmed for the project.
Planning item	Basis for quotation
DFM review	Indicative 3–5 working days after complete drawings and requirements.
New tooling	Indicative 4–8 weeks to first mould trial after tool-design approval and commercial release; corrections and customer validation are additional.
Order quantities	Initial planning basis: 500-piece pilot or 1,000-piece repeat batch per part number, resin and colour, subject to quotation.
Repeat orders	Indicative 10–15 working days after materials and the production slot are confirmed. Customer qualification, special processing and transit are additional.

JingZhan manufacturing equipment and production aisle — Company production-equipment reference. Production environment and supply conditions are specified for each project.

Keep repeat orders on an approved baseline

Separate tooling investment from piece price and define the approval steps before series release. Annual demand informs cavity count and procurement, while release quantities determine each batch. Agree tool maintenance, material-change review, lot records and the response to nonconforming parts as part of the ongoing supply plan.

Tooling investment is quoted separately from the piece price. Share annual demand and the quantity per release so cavity count, material procurement and batch cost can be reviewed together.

RELATED APPLICATIONS

Where these components can be used

Custom component assemblies for medical-equipment development.
Laboratory, sample-handling and diagnostic-development projects.
Plastic interfaces, protective housings and supporting mechanisms within validated systems.

Medical-grade resin or component inspection alone does not establish finished-device biocompatibility, sterility or approval. Qualification is defined for the final device, manufacturing process and intended use.

White moulded loop-handle component samples — Related handling components showing how shape, edge quality and assembly requirements vary by design.

Discuss your drawing and supply requirements. Send CAD, resin preference, critical features, annual demand and release quantity. Contact our engineering team →

Process	Precision plastic injection molding
Typical Applications	Device housings, sampling parts, laboratory components, caps, trays and packaging
Material Support	Application-specific medical and engineering thermoplastics
Project Scope	DFM, mold development, sampling and volume production
Quality Focus	Clean surfaces, dimensional consistency, fit and traceable inspection
