Contact Lens Multiwell Culture Trays

These contact lens multiwell culture trays are engineered for multiwell lens handling, hydration, inspection and process organization, from early DFM review through repeat production. The molding plan is developed around uniform well arrays and lens positioning, flat tray geometry for automated handling, and smooth cavities that support release and cleaning. Resin selection, gate location, parting lines and inspection points are matched to the mating parts, operating environment and expected production volume.

Uniform Well Arrays and Lens Positioning
Flat Tray Geometry for Automated Handling
Application-Specific Resin Selection
DFM, Tooling and Repeat Production

Product Overview

Multiwell trays for organized lens handling and processing

JingZhan develops custom multiwell trays and related carriers for contact-lens handling, hydration, inspection and process organization. The manufacturing review connects well geometry and array spacing with the customer's instrument, fixture and handling method. A repeated-well design does not by itself establish cell-culture or biological performance.

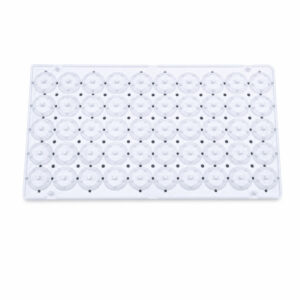

Clear moulded tray with a fine repeated well array
Multiwell tray example showing the repeated array and outer support geometry.

DESIGN AND MANUFACTURING

Key processing requirements

Define the complete well array

Specify the well count, pitch, depth and base profile together with the outer datums. Confirm the intended contact points and whether the part must fit an existing holder or automated handling system.

Keep the tray stable

Review wall balance, ribs and cooling to control distortion across the array. Agree the functional flatness and support conditions used for measurement instead of applying a blanket tolerance.

Control filling and release

Evaluate flow balance, venting and demoulding of repeated features. Check cavity consistency and any gate or ejector marks against the customer's permitted handling and contact areas.

Match the material to the process

Review clarity, colour, liquid exposure and temperature with the selected grade. Specify any cleaning, surface treatment or contamination requirement separately and agree how it will be verified.

Clear moulded tray with round wells and perimeter handling details
Related well-tray sample photographed at an angle to show well depth and edge features.

TECHNICAL SPECIFICATIONS

Parameters agreed for your part

Custom-manufacturing options, not common measured values for every pictured part.
Parameter Project specification
Component scope Multiwell trays, process carriers and related moulded handling components.
Resin options PP, PS, PC or COC/COP grades can be reviewed against the intended process.
Well arrangement Custom count, pitch, depth and base geometry; pictured samples may have different layouts.
Outer interfaces Customer-defined footprint, support datums, lid fit and fixture interfaces.
Critical checks Well geometry, array spacing, flatness and drawing-defined handling features.
Surface acceptance Clarity, colour, flash limits and permitted gate or ejector contact.
Tool configuration Cavity layout, insert construction, venting and serviceability reviewed during DFM.
Delivery condition Packing protection and agreed cleanliness, identification and inspection records.
JingZhan mouldmaking and machining workshop equipment
Company manufacturing-equipment photograph supporting project-specific tool development.

PRODUCTION AND REPEAT SUPPLY

Equipment, lead time and order planning

The proposed route combines CNC/EDM toolmaking with injection moulding and feature-appropriate checks. JingZhan's equipment list includes machining, EDM, moulding and vision/dimensional inspection resources. Tool and press selection account for the tray's projected area, repeated features and resin; inspection fixtures reference the agreed support datums.

Indicative planning only. Final MOQ and lead time are confirmed for the project.
Planning item Basis for quotation
DFM review Indicative 3–5 working days after complete drawings and requirements.
New tooling Indicative 6–8 weeks to first mould trial after tool-design approval and commercial release; corrections and customer validation are additional.
Order quantities Initial quotation-planning basis: a 500-piece pilot or 1,000-piece repeat batch per part number, resin and colour, subject to project quotation.
Repeat orders Indicative 10–15 working days after materials and the production slot are confirmed. Customer qualification, special processing and transit are additional.
JingZhan dimensional inspection equipment
Inspection resources are assigned to suitable features and agreed measurement methods.

Keep repeat orders on an approved baseline

Approve the tray revision, resin, sample and measuring fixture before repeat orders. Define startup and agreed in-process checks for the array and outer interfaces. Review insert replacement, polishing or other tool maintenance that can affect the well geometry before the next batch is released.

Tooling investment is quoted separately from the piece price. Share annual demand and release quantities so cavity count, procurement and batch cost can be reviewed together.

RELATED APPLICATIONS

Where these components can be used

Organized lens transfer, hydration or inspection under a customer-defined process.

Multi-position carriers fitted to laboratory or manufacturing fixtures.

Related handling trays supporting small-part separation and repeatable positioning.

Clear repeated-cavity tray components photographed from the reverse side
Related cavity-tray examples showing forming depth, connecting features and the reverse-side geometry.

Culture suitability, surface treatment, liquid compatibility and finished-product performance are project qualification items. No standard well count, working volume or biological claim is assigned to all photographed examples.

Discuss your drawing and supply requirements. Send CAD, resin preference, critical features, annual demand and release quantity. Contact our engineering team →
